Ev Chargers lag luam
◆ Lub 40KW mobile charging ntaus ntawv tsim los ntawm peb lub tuam txhab, lub input voltage yog 380V, cov zaub yog ib qho yooj yim mus use thiab navigate, rated tso zis ntawm cov khoom yog 40KW,
◆ High-performance charging module, ultra-wide charging ntau, ua haujlwm siab.
◆ 4.
◆ Anti-kev sib tsoo theem IK8, tsis muaj kev ntshai ntawm kev sib tsoo sab nraud.
◆ Nws kuj tseem tuaj yeem kho raws li BMS tsis ua haujlwm ntawm tag nrho lub tsheb.
◆ Kev ua haujlwm siab: Ntau dua lossis sib npaug li 95%
◆ Nws yog tsim los ntawm kev saib xyuas module, lub zog siv hluav taws xob, lub chaw tiv thaiv kev txo qis, thiab kev txawj ntse thiab tus phooj ywg zoo rau txiv neej-tshuab interface.
- Kev xa khoom sai
- Quality Assurance
- 24/7 Kev Pabcuam Cov Neeg Siv Khoom
Khoom Taw qhia
Product Descriptions
Nyob rau hauv cov toj roob hauv pes hloov zuj zus ntawm hluav taws xob tsheb (EV), nyob ua ntej ntawm qhov nkhaus thiab hluav taws xob rau koj qhov kev lag luam nrog peb cov lag luam saum toj kawg nkaus Mobile EV Chargers. Lub hwj chim nyob rau hauv ib lub pob sleek, lub charger no yog tsim los rau cov lag luam uas xav tau kev ua tau zoo, muaj peev xwm ua tau zoo, thiab kov ntawm kev hloov kho.
POWER METS MOBILITY:
Xav txog lub ntiaj teb uas koj tuaj yeem nqa cov peev txheej EV uas muaj peev xwm them txhua qhov chaw koj txoj kev lag luam mus. Peb cov kev txiav-ntug, yooj yim-rau-tsheb thauj mus los Mobile EV Charger yog ib qho kev ua si-hloov, muab ib qho astounding 30KW tso zis zog. Ua rau koj lub tsheb hluav taws xob nyob rau hauv ib lub teeb uas muaj qhov ua tau zoo ntawm cov zis hluav taws xob xws li 200-750V thiab lub zog 100A tso zis tam sim no.
SEAMLESS CONNECTIVITY:

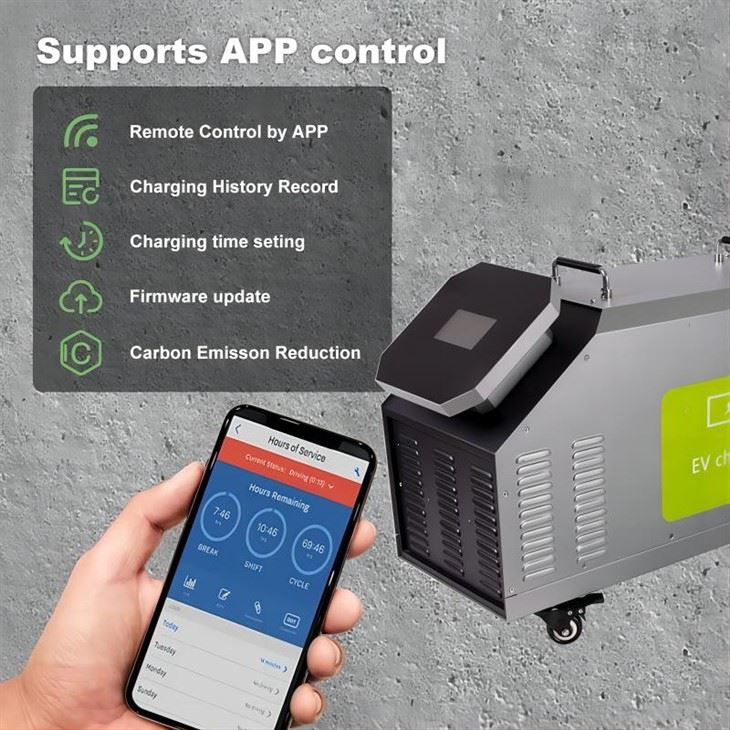

Txais tos rau lub sijhawm ntawm kev them nyiaj ntse EV! Peb cov chargers tuaj nruab nrog RFID thev naus laus zis tshiab, kev sib cuam tshuam ntawm lub vijtsam, thiab kev sib koom ua ke app rau kev ua haujlwm tsis sib haum. Nyob twj ywm nrog koj cov cuab tam nrog OCPP, LAN, thiab GPRS / 4G peev xwm, ua kom koj lub lag luam ib txwm khiav ntawm qhov ua tau zoo tshaj plaws hauv lub hnub nyoog digital no.
TSIS MUAJ CUSTOMIZATION:

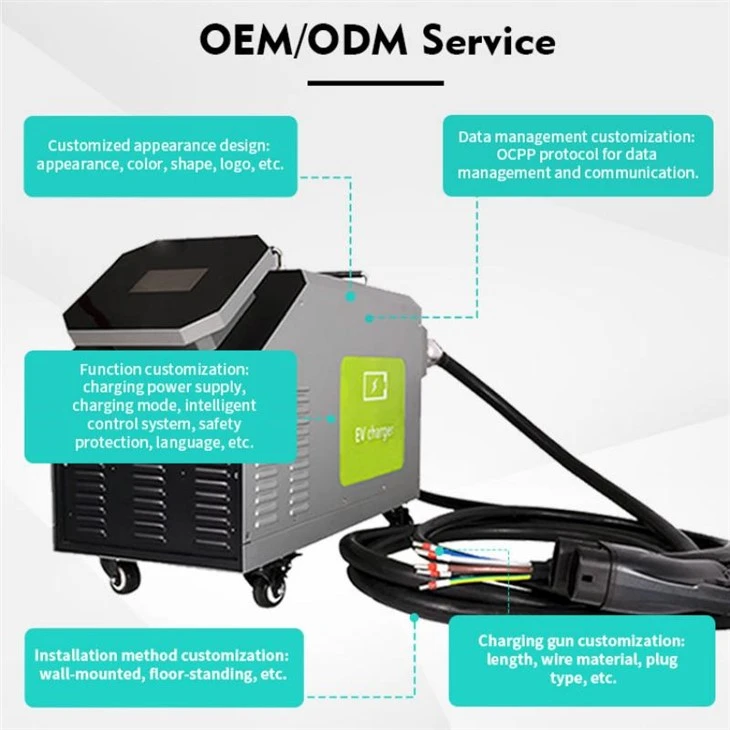

Sawv tawm ntawm pob nrog EV charger uas txaus siab nthuav tawm koj lub hom. Tus qauv tsim minimalist tso cai rau lub sijhawm zoo tshaj plaws rau kev tsim khoom lag luam, muab lub zog rau koj tus kheej thiab txhim kho koj lub koom haum tus kheej nrog lub logo customized.
ON-THE-SPOT ASSISTANCE:
Koj cov neeg siv khoom yuav tsis ntshai qhov kev ntshai ntawm kev tso tseg nrog peb txoj kev npaj EV Charger. Txawm hais tias muaj kev pabcuam thaum muaj xwm txheej ceev lossis kev ua haujlwm txhua hnub, lub charger muaj zog no yog lub teeb pom kev zoo rau txhua qhov kev xav tau EV.
ADVANCED COMPATIBILITY:
Universal thov yog ib qho tseem ceeb hauv lub ntiaj teb sib txawv ntawm EVs. Peb lub charger txhawb nqa tag nrho cov qauv kev them nyiaj loj xws li GBT, CHAdeMO, CCS1, thiab CCS2, uas txhais tau tias tsis muaj tus tsav tsheb raug tso tseg, txawm lawv caij tsheb.
DURABILITY THIAB SAFETY:
Crafted los ua siab ntev, peb Txawb EV Charger tuav ib qho kev ntsuam xyuas IP54, lav nws txoj kev tiv thaiv plua plav thiab dej txaws. Nrog nws qhov loj me me (640 x 390 x 230 mm) thiab qhov hnyav ntawm qhov ntim ntawm 68 kg, koj tuaj yeem ua kom koj cov neeg siv khoom ntawm cov kev daws teeb meem rugged tsis tau nqa tau yooj yim uas tau npaj los ntsib ntau qhov chaw.
BOLD INNOVATION:
Qhov no tsis yog lub charger xwb; nws yog ib nqe lus-kev cog lus rau kev vam meej thiab kev xav rau pem hauv ntej. Muab koj txoj kev lag luam nrog peb cov sleek, ntse Mobile EV Chargers thiab dhau los ua lub zog muaj zog tom qab kev thauj mus los tag kis.
Caw yav tom ntej ntawm eco-phooj ywg mus rau hauv koj lub lag luam hnub no. Cia peb Cov Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob yog qhov txuas rau lub ntiaj teb ntsuab, kev sib txuas ntau dua, txhua lub sijhawm txhawb koj txoj kev lag luam mus rau pem hauv ntej ntawm EV kev lag luam. Koj txoj kev mus rau txoj kev vam meej tsuas yog them nqi xwb!
Khoom Qhia
| Qauv | NCDP011503-001 | NCDP012003-001 | NCDP013003-001 | NCDP014003-001 |
| Input voltage | AC380V ± 15% | |||
| Ua hauj lwm zaus | 50/60 Hz | |||
| Hwj chim Factor | >0.99 | |||
| Input Tam sim no | 25A | 32A | 45A | 64A |
| Tso zis zog | 15 KW | 20 KW | 30 KW | 40 kWm |
| Cov zis hluav taws xob | 200-750VDC | |||
| Cov zis tam sim no | 25A/37A | 33A/60A | 50A/100A | 66A/120A |
| Ib puag ncig ua haujlwm | ||||
| Qhov kub thiab txias | -40 ~ 85 degree; 25 degree (hom); Kev txawj ntse derating thaum lub plhaub kub tshaj 70 degree | |||
| Humidity ntau | 5 ~ 90RH%; tsis-condensation | |||
| Qhov siab | 2000M | |||
| Cia ib puag ncig | ||||
| Qhov kub thiab txias | -20^50 degree ; 25 degree (hom) | |||
| Humidity ntau | 5 ~ 95RH%; 25RH% (hom); tsis-condensation | |||
| Qhov siab | 2000M | |||
| Ib qhov loj (mm) | 635mm * 295mm * 500mm (Tsis muaj phom, kov, log) | |||
| Packing loj (mm) | 900mm * 720mm * 570mm | |||
| Carton packing / hnyav | Net nyhav: 25KG Gross: 30KG | Net nyhav: 30KG Gross: 35KG | Net Nyhav: 45 KG Gross: 50 KG | Net Nyhav: 60KG Tag Nrho: 65KG |
| IP Qib | IP54 | |||
| Tib neeg tshuab Interface | 4.3 nti Touchscreen + Yeem RFID Card | |||
| Kev sib koom tes | Default Famil off Line, OCPPfoptional), LAN thiab GPRS/4G (Yeem) | |||

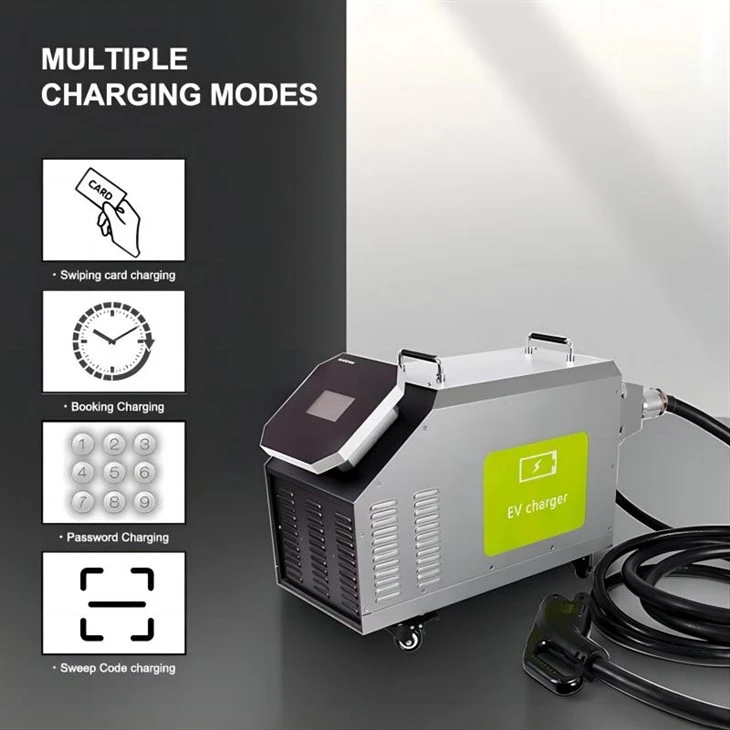

| Kev them nyiaj hom | RFID (Yeem), Touchscreen, APP (Yeem) | |||
| Kev them nqi Standard | Kev them nyiaj yug GB / LCHAdeMO, CCS1Z CCS2 (Xav tau yuav rab phom / kab) | |||
| Txuj | EN61851-1JEVSG 105 | |||
| raws tu qauv | CHAdeMO 2.0/DIN 70121, OCPP 1.6(JS0N or SOAP), ISO 15118 | |||
Peb lub tuam txhab
Cov lus nug nquag
01. Dab tsi ua rau EV Chargers lag luam sawv tawm ntawm lwm cov kev daws teeb meem?
02. Lub EV Chargers Lub Lag Luam puas tuaj yeem txhawb nqa ntau cov qauv them nqi xws li GBT, CHAdeMO, CCS1, thiab CCS2?
03. Dab tsi yog qhov ntev thiab qhov hnyav ntawm EV Chargers Lag Luam rau kev thauj mus los thiab kev teeb tsa?
04. Puas yog Kev Lag Luam EV Chargers haum rau siv sab nraum zoov nrog nws qhov ntsuas IP54?
05. Lub Chargers txhawb txoj kev pab li cas thiab cov yam ntxwv tshwj xeeb rau txoj haujlwm no yog dab tsi?
